產品介紹

品牌：Eurofins York
型號：YRS02

品牌：Eurofins York
型號：YRS03

品牌：Eurofins York 型號：CGE05

品牌：Eurofins York 型號：CGE06

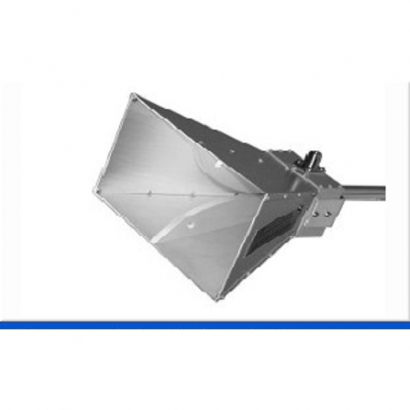

Broadband Horn Antennas


BBHA 9120 A
Broad-Band Horn Antenna (0.8) 1 – 5 (10) GHz, N-connector


BBHA 9120 B
Broad-Band Horn Antenna 1 – 10 GHz, N-connector


BBHA 9120 C
Broad-Band Horn Antenna 2 – 18 (20) GHz, SMA-connector


BBHA 9120 D
Broad-Band Horn Antenna (0,8) 1 – 18 GHz, N-connector


BBHA 9120 E
Broad-Band Horn Antenna 0.5 – 6 GHz, N-connector


BBHA 9120 F-N
Broad-Band Horn Antenna 0.2 – 2 GHz, N-connector


BBHA 9120 F-7/16
Broad-Band Horn Antenna 0.2 – 2 GHz, 7/16-connector


BBHA 9120 G
Broad-Band Horn Antenna 0.4 – 2.8 GHz, 7/16-connector


BBHA 9120 J
Broadband horn antenna optimized for the gain in 1 m distance from 800 MHz to 6.2 GHz. Especially optimized for automotive immunity.  Power limited by the N‑connector. The N-connector can withstand ca. 400 Watt at 4 GHz.


BBHA 9120 LF
Broad-Band Horn Antenna 0.7 – 6 GHz, N-connector


BBHA 9170
Broad-Band Horn Antenna 15 – 26.5 (40) GHz, SMA-compatible connector


HA 9250-12
Pyramidal standard gain horn Antenna, 1-2 GHz, 7/16-connector, 20 dBi, optimized for far field gain.


HA 9250-24
Pyramidal standard gain horn Antenna, 2 – 4 GHz, 7/16-connector, 20 dBi, optimized for far field gain.


HA 9250-48
Pyramidal standard gain horn Antenna, 4 – 8 GHz, 7/16-connector, 22mm-tube, 20 dBi, optimized for far field gain. (Alternative fixture available: 3/8’’-thread and M10 thread in center of gravity replaces 22mm-tube, alternative connector available: N replaces 7/16)


HA 9251-12
Pyramidal standard gain horn Antenna, 1-2 GHz, 7/16-connector, far field gain 19-22 dBi, optimized for 1 m gain.


HA 9251-24
Pyramidal standard gain horn Antenna, 2 – 4 GHz, 7/16-connector, 18 dBi, optimized for the gain in 1 m distance.


HA 9251-48
Pyramidal standard gain horn Antenna, 4 – 8 GHz, 7/16-connector, 22mm-tube, 19 dBi, optimized for the gain in 1 m distance.


HWRD750
Double ridged horn antenna 7.5-18 GHz with waveguide flange WRD750.
Gain 16-21 dBi, 1 kW, especially to generate very high field strengths.


Dual polarised horn antennas


CTIA 0710
CTIA horn antenna, dual polarized, 0,7-10 GHz, typ. 30 dB cross polar rejection, antenna with reduced size for OTA measurements. Antenna without 22 mm tube!


Opt. CTIA tube 22 mm
Option for CTIA 0710: 22 mm tube with indexing ring.


BBHX 9120 E
Dual polarized Broad-Band Horn Antenna 0.4 – 10 GHz, N-connectors


BBHX 9120 LF
Dual polarized Broad-Band Horn Antenna (0.8) 1 – 8 (10.5) GHz, N-connectors.

Broadband Horn Antennas


BBHA 9120 A
Broad-Band Horn Antenna (0.8) 1 – 5 (10) GHz, N-connector


BBHA 9120 B
Broad-Band Horn Antenna 1 – 10 GHz, N-connector


BBHA 9120 C
Broad-Band Horn Antenna 2 – 18 (20) GHz, SMA-connector


BBHA 9120 D
Broad-Band Horn Antenna (0,8) 1 – 18 GHz, N-connector


BBHA 9120 E
Broad-Band Horn Antenna 0.5 – 6 GHz, N-connector


BBHA 9120 F-N
Broad-Band Horn Antenna 0.2 – 2 GHz, N-connector


BBHA 9120 F-7/16
Broad-Band Horn Antenna 0.2 – 2 GHz, 7/16-connector


BBHA 9120 G
Broad-Band Horn Antenna 0.4 – 2.8 GHz, 7/16-connector


BBHA 9120 J
Broadband horn antenna optimized for the gain in 1 m distance from 800 MHz to 6.2 GHz. Especially optimized for automotive immunity.  Power limited by the N‑connector. The N-connector can withstand ca. 400 Watt at 4 GHz.


BBHA 9120 LF
Broad-Band Horn Antenna 0.7 – 6 GHz, N-connector


BBHA 9170
Broad-Band Horn Antenna 15 – 26.5 (40) GHz, SMA-compatible connector


HA 9250-12
Pyramidal standard gain horn Antenna, 1-2 GHz, 7/16-connector, 20 dBi, optimized for far field gain.

Logarithmic Periodic Broadband Antennas



UHALP 9108 A
Log.-Periodic Antenna, alum. Tubing, 250 – 2400 MHz, low loss, 1 kW power


VUSLP 9111-1000
Log.-Per. Antenna, aluminium tubing, 1000 – 3000 (4000) MHz, low loss, 1 kW.



VUSLP 9111-400
Log.-Periodic Antenna, alum. Tubing, 400 - 3000 (4000) MHz, low loss, 1 kW.



VUSLP 9111
Log.-Periodic Antenna, alum. Tubing, 200 – 2300 (4000) MHz, low loss, 1 kW power



VUSLP 9111 B
Log.-Periodic Antenna, alum. Tubing, (180) 200 - 3000 (4000) MHz, low loss,
1 kW power



VUSLP 9111 E
Log.-Per. Antenna, aluminium tubing, 1 kW power, 70 (65)-3000 (4000) MHz. Recommended adapter: KG 9201. EN 61000-4-3



VULP 9118 A
Log.-Per. Antenna, aluminium tubing, 1 kW power, 180 -1500 (2000) MHz



VULP 9118 B
Log.-Per. Antenna, aluminium tubing, 1 kW power, 160-1500 (2000) MHz



VULP 9118 C
Log.-Per. Antenna, aluminium tubing, 1 kW power, 100-1400 (2000) MHz



VULP 9118 C special
Log.-Per. Antenna, aluminium tubing, 1 kW power, 100-1400 (2000) MHz.
Nearly identical gain as VULP 9118 C but with reduced width.  Special=folded longest elements.



VULP 9118 D
Log.-Per. Antenna, aluminium tubing, 1 kW power, (80) 95 -1500 (1800) MHz



VULP 9118 D special
Log.-Per. Antenna, aluminium tubing, 1 kW power, (80) 95 -1500 (1800) MHz. Nearly identical gain as VULP 9118 D but with reduced width.
Special = folded longest elements.



VULP 9118 D HP
Log.-Per. Antenna, aluminium tubing,  high power with 7/16.-connector,
(80) 95 -1500 (1800) MHz



VULP 9118 D HP sp
Log.-Per. Antenna, aluminium tubing,  high power with 7/16.-connector,
(80) 95 -1500 (1800) MHz, nearly identical gain as VULP 9118 E High Power but with reduced width.  Special = folded longest elements.



VULP 9118 E
Log.-Per. Antenna, aluminium tubing, 1 kW power, 75 (50)-1500 MHz.



VULP 9118 E special
Log.-Per. Antenna, aluminium tubing, 1 kW power, 75 (50)-1500 MHz. Nearly identical gain as VULP 9118 E but with reduced width.
Special=folded longest elements.



VULP 9118 E High Power
Log.-Per. Antenna, aluminium tubing, high power, 7/16-connector,
75 (50)-1500 MHz.



VULP 9118 E HP sp
Log.-Per. Antenna, aluminium tubing, high power, 7/16-connector,
75 (50)-1500 MHz. Nearly identical gain as VULP 9118 E HP but with reduced width. Special=folded longest elements.



VULP 9118 F
Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 55 -1800 MHz



VULP 9118 G
Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 45 -1500 MHz



VULP 9118 G special
Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 45 -1500 MHz. Nearly identical gain as VULP 9118 G but with reduced width.
Special=folded longest elements.



VULP 9118 H
Log.-Per. Antenna, aluminium tubing, 1 kW power, (26) 30 - 1500 (1800) MHz, N‑connector gain 6 dBi, VSWR<3, width 5.2 m, length 4.8 m, weight 35 kg.



Opt. WP
Option: grey coating and sealing for outdoor use



USLP 9142
UHF – SHF Log. – Per. Antenna, 0.7 – 5 (8) GHz



USLP 9143
UHF – SHF Log. – Per. Antenna, (0.25) 0.3 – 7 (8) GHz



USLP 9143 B
UHF – SHF Log. – Per. Antenna, (0.18) 0.2 – 7 (8) GHz



ESLP 9145
UHF – EHF Log. – Per. Antenna, (0.7) 1- 18 (20) GHz, N-connector



XSLP 9142
Dual Polarized UHF-SHF Log.-Per. Antenna, 800 MHz – 3(5) GHz, 50 W



XSLP 9143
Dual Polarized UHF-SHF Log.-Per. Antenna, 300 MHz – 3(5.5) GHz, 50 W







1GHz up to 10GHz

近場探棒 Near field probes up to 40GHz

Near field probes up to 20GHz

30MHz up to 3GHz

廠牌：Langer
型號：FLS106 PCB
