High Pass Filter

  1. 射頻濾波器RF Filter
  2. High Pass Filter
High Pass filter

High Pass filter

undefined
/

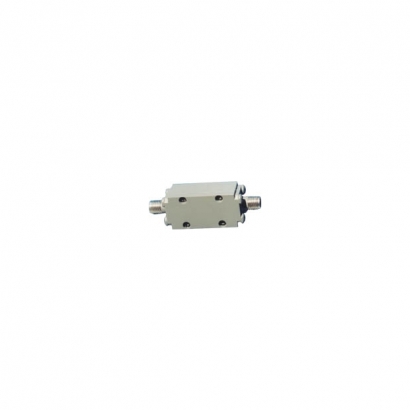

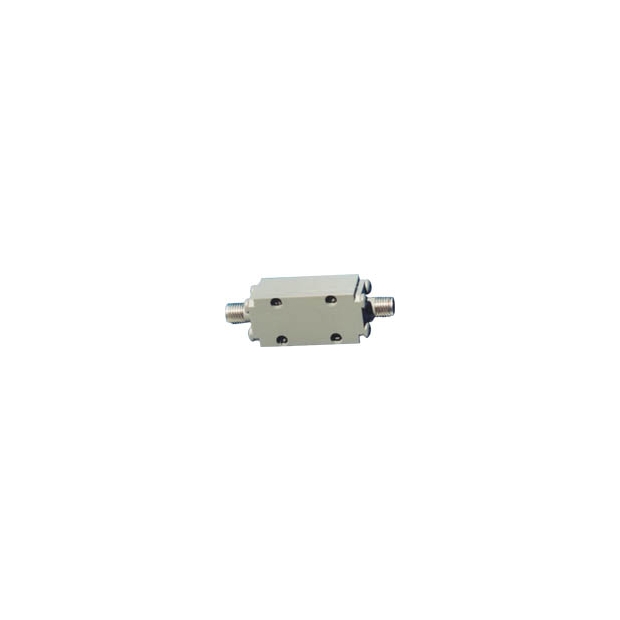

  • Highpass_sm.jpg
詳細介紹
Passband
(MHz)		 Loss(dB) VSWR Rejection
(dB)		 Stopband
(MHz)		 Size
(inches)
100 to 500 1.0 1.5:1 60 0 to 80 1.50 x 0.50×0.40
500 to 2000 1.0 1.5:1 60 0 to 425 1.25 x 0.50 x0.40
1000 to 15000 1.0 2.0:1 60 0 to 100 0.50 x 0.75 x0.50
1000 to 18000 2.5 2.0:1 60 0 to 800 1.25 x 0.48 x0.40
1200 to 18000 2.5 2.0:1 60 0 to 1000 1.25 x 0.48 x0.40
1500 to 18000 1.5 2.0:1 50 0 to 1000 1.25 x 0.48 x0.40
1800 to 13000 1.5 2.0:1 60 0 to 900 1.10 x 0.60 x0.50
2000 to 8000 1.0 1.7:1 60 0 to 1500 1.10 x 0.6 x 0.50
2500 to 18000 1.5 2.0:1 50 0 to 2000 1.25 x 0.48 x0.40
2800 to 18000 2.5 2.0:1 60 0 to 2500 1.25 x 0.48 x0.40
2900 to 18000 2.8 2.0:1 45 0 to 2700 1.25 x 0.48 x0.40
3000 to 18000 2.5 2.0:1 50 0 to 2700 1.20 x 0.50 x0.50
4000 to 18000 1.5 2.0:1 50 0 to 3300 1.25 x 0.48 x0.40
6000 to 18000 1.2 1.7:1 60 0 to 5000 1.50 x 0.80 x 0.50
6400 to 18000 1.2 1.7:1 55 0 to 5850 1.50 x 0.80 x 0.50
7000 to 18000 1.5 2.0:1 50 0 to 5850 1.54 x 0.77 x0.50
8000 to 18000 2.0 2.0:1 60 0 to 7200 1.24 x 0.73 x0.50
