Band Reject (Notch) Filter

Band Reject (Notch) Filter

undefined
/

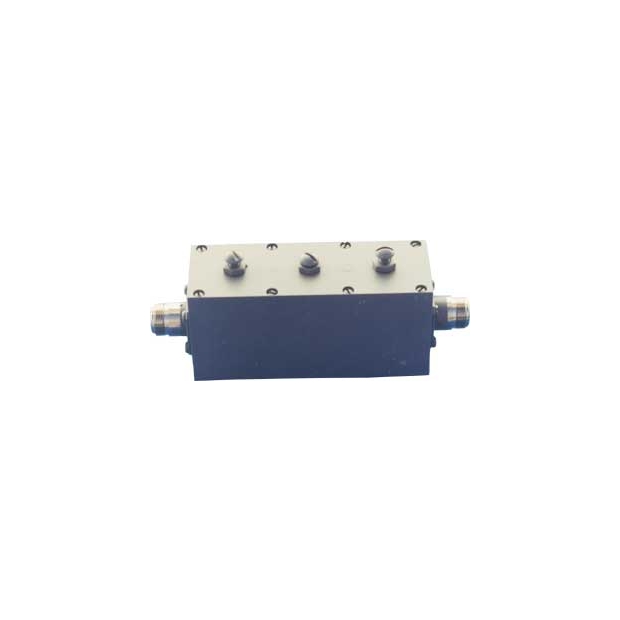

  • Notch1.jpg
詳細介紹
Passbands
(MHz)		 Loss(dB) VSWR Rejection
(dB)		 Stopband
(MHz)		 Size
(inches)
0 to 2170, 3000 to12000 see pdf data sheet 2.0:1 50 2400 to 2500 1.0 x 0.98 x 0.51
0 to 2170, 3000 to 18000 2.0 2.0:1 50 2400 to 2500 1.0 x 0.98 x 0.51
0 to 4950, 5550 to 11000 2.0 1.7:1 45 5150 to 5350 3.48 x 0.87 x 0.53
0 to 5250, 5950 to 12000 2.0 1.7:1 45 5470 to 5725 3.33 x 0.87 x 0.54
0 to 5550, 6050 to 12000 2.0 1.7:1 45 5725 to 5875 3.28 x 0.87 x
0.53
0 to 550, 1300 to 6000 1.5 2.0:1 50 800 to 1000 1.0 x 0.98 x 0.51
0 to 1250, 2600 to 9000 1.5 2.0:1 50 1800 to 2000 1.0 x 0.98 x 0.51
0 to 3200, 3800 to 9000 1.5 2.0:1 45 3400 to 3600 4.50 x 0.99 x 0.70
0 to 2000, 3200 to 18000 1.5 2.0:1 50 2495 to 2690 1.0 x 0.98 x 0.51
0 to 1900, 3000 to 18000 1.5 2.0:1 50 2300 to 2400 1.0 x 0.98 x 0.51
0 to 2800, 4400 to 18000 1.5 2.0:1 40 3400 to 3800 1.25 x 0.48 x 0.40
750 to 1500, 1650 to 2500 1.0 1.5:1 50 1573.92 to 1576.92 4.70 x 2.30 x 1.20
0 to 1260, 2240 to 9000 1.5 2.0:1 45 1710 to 1785 1.00 x 0.98 x 0.51
0 to 1600, 2160 to 9000 1.5 2.0:1 40 1850 to 1970 1.00 x 0.98 x 0.51
0 to 1770, 2130 to 9000 1.5 2.0:1 30 1922 to 1978 1.00 x 0.98 x 0.51
0 to 4550, 6400 to 18000 1.5 2.0:1 40 5150 to 5880 1.25 x 0.48 x 0.40
0 to 800, 875 to 2000 1.5 1.5:1 50 825 to 850 7.80 x 2.25 x 2.50
0 to 850, 940 to 2000 1.5 1.5:1 50 880 to 915 7.80 x 2.25 x 2.50
0 to 1660, 1835 to 4000 1.5 1.5:1 50 1710 to 1785 10.0 x 1.60 x 1.14
0 to 1800, 1960 to 3500 1.5 1.5:1 50 1850 to 1910 9.53 x 1.65 x 1.14
0 to 1870, 2030 to 4200 1.5 1.5:1 50 1920 to 1980 9.53 x 1.65 x 1.14
0 to 880, 950 to 1500 1.5 1.5:1 50 902 to 928 7.80 x 2.25 x 2.50
0 to 2000,  2400 to 18000 2.0 2.0:1 40 2110 to 2170 1.0 x 0.98 x 0.51
