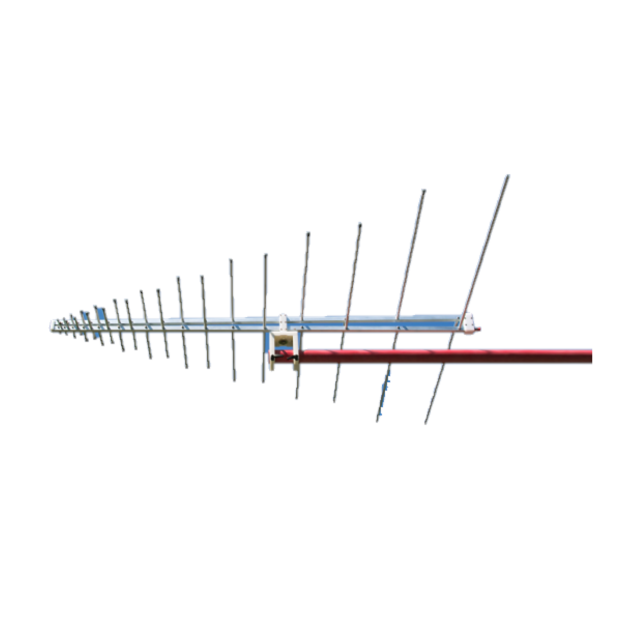

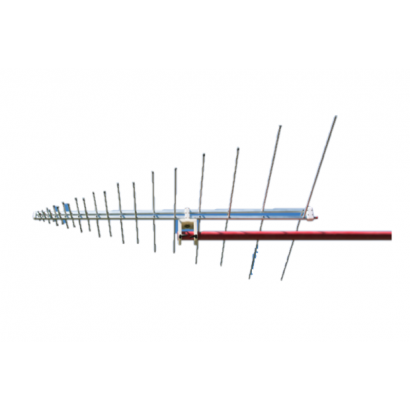

  • 9118E-620px.png

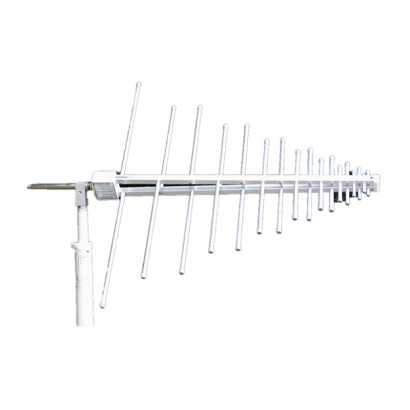

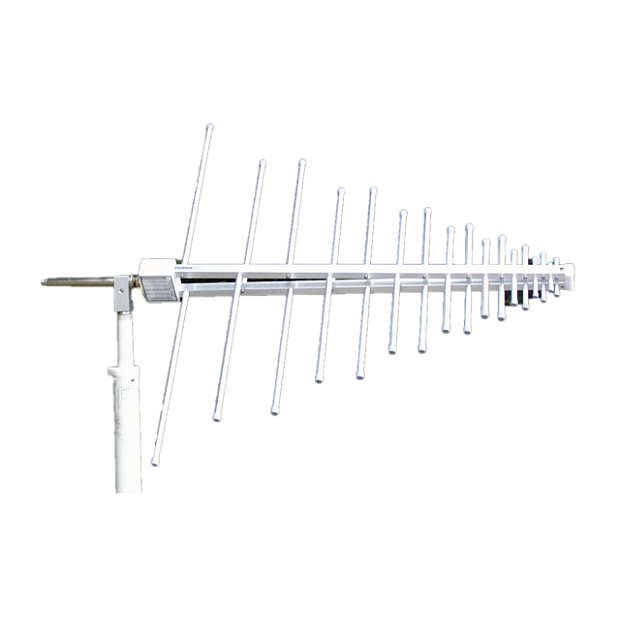

  • 9118A-620px.png

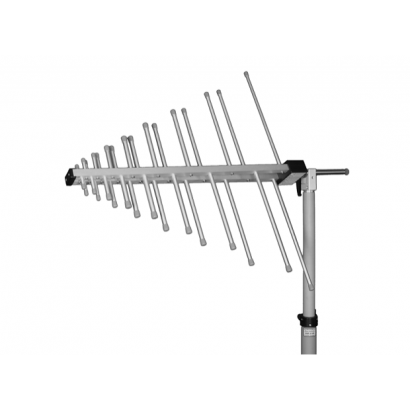

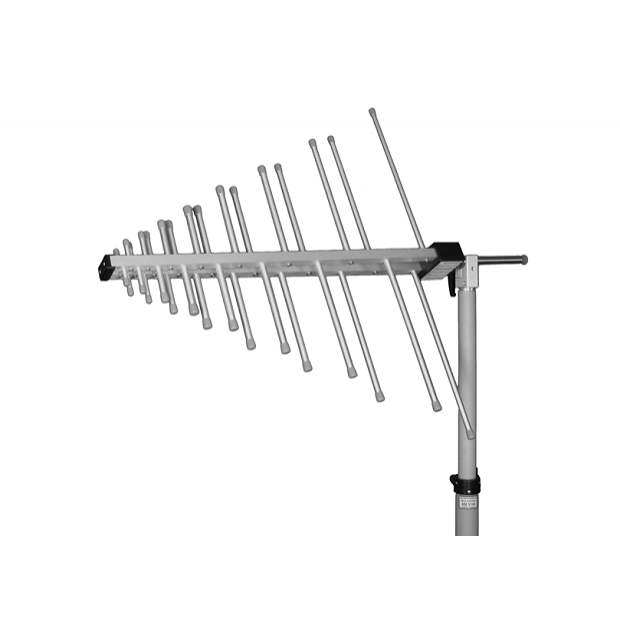

  • 9118B-620px.png
詳細介紹
Logarithmic Periodic Broadband Antennas
UHALP 9108 A Log.-Periodic Antenna, alum. Tubing, 250 – 2400 MHz, low loss, 1 kW power
VUSLP 9111-1000 Log.-Per. Antenna, aluminium tubing, 1000 – 3000 (4000) MHz, low loss, 1 kW.
VUSLP 9111-400 Log.-Periodic Antenna, alum. Tubing, 400 - 3000 (4000) MHz, low loss, 1 kW.
VUSLP 9111 Log.-Periodic Antenna, alum. Tubing, 200 – 2300 (4000) MHz, low loss, 1 kW power
VUSLP 9111 B Log.-Periodic Antenna, alum. Tubing, (180) 200 - 3000 (4000) MHz, low loss,
1 kW power
VUSLP 9111 E Log.-Per. Antenna, aluminium tubing, 1 kW power, 70 (65)-3000 (4000) MHz. Recommended adapter: KG 9201. EN 61000-4-3
VULP 9118 A Log.-Per. Antenna, aluminium tubing, 1 kW power, 180 -1500 (2000) MHz
VULP 9118 B Log.-Per. Antenna, aluminium tubing, 1 kW power, 160-1500 (2000) MHz
VULP 9118 C Log.-Per. Antenna, aluminium tubing, 1 kW power, 100-1400 (2000) MHz
VULP 9118 C special Log.-Per. Antenna, aluminium tubing, 1 kW power, 100-1400 (2000) MHz.
Nearly identical gain as VULP 9118 C but with reduced width.  Special=folded longest elements.
VULP 9118 D Log.-Per. Antenna, aluminium tubing, 1 kW power, (80) 95 -1500 (1800) MHz
VULP 9118 D special Log.-Per. Antenna, aluminium tubing, 1 kW power, (80) 95 -1500 (1800) MHz. Nearly identical gain as VULP 9118 D but with reduced width.
Special = folded longest elements.
VULP 9118 D HP Log.-Per. Antenna, aluminium tubing,  high power with 7/16.-connector,
(80) 95 -1500 (1800) MHz
VULP 9118 D HP sp Log.-Per. Antenna, aluminium tubing,  high power with 7/16.-connector,
(80) 95 -1500 (1800) MHz, nearly identical gain as VULP 9118 E High Power but with reduced width.  Special = folded longest elements.
VULP 9118 E Log.-Per. Antenna, aluminium tubing, 1 kW power, 75 (50)-1500 MHz.
VULP 9118 E special Log.-Per. Antenna, aluminium tubing, 1 kW power, 75 (50)-1500 MHz. Nearly identical gain as VULP 9118 E but with reduced width.
Special=folded longest elements.
VULP 9118 E High Power Log.-Per. Antenna, aluminium tubing, high power, 7/16-connector,
75 (50)-1500 MHz.
VULP 9118 E HP sp Log.-Per. Antenna, aluminium tubing, high power, 7/16-connector,
75 (50)-1500 MHz. Nearly identical gain as VULP 9118 E HP but with reduced width. Special=folded longest elements.
VULP 9118 F Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 55 -1800 MHz
VULP 9118 G Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 45 -1500 MHz
VULP 9118 G special Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 45 -1500 MHz. Nearly identical gain as VULP 9118 G but with reduced width.
Special=folded longest elements.
VULP 9118 H Log.-Per. Antenna, aluminium tubing, 1 kW power, (26) 30 - 1500 (1800) MHz, N‑connector gain 6 dBi, VSWR<3, width 5.2 m, length 4.8 m, weight 35 kg.
Opt. WP Option: grey coating and sealing for outdoor use
USLP 9142 UHF – SHF Log. – Per. Antenna, 0.7 – 5 (8) GHz
USLP 9143 UHF – SHF Log. – Per. Antenna, (0.25) 0.3 – 7 (8) GHz
USLP 9143 B UHF – SHF Log. – Per. Antenna, (0.18) 0.2 – 7 (8) GHz
ESLP 9145 UHF – EHF Log. – Per. Antenna, (0.7) 1- 18 (20) GHz, N-connector
XSLP 9142 Dual Polarized UHF-SHF Log.-Per. Antenna, 800 MHz – 3(5) GHz, 50 W
XSLP 9143 Dual Polarized UHF-SHF Log.-Per. Antenna, 300 MHz – 3(5.5) GHz, 50 W
