| Broadband Horn Antennas | |
| BBHA 9120 A | Broad-Band Horn Antenna (0.8) 1 – 5 (10) GHz, N-connector |
| BBHA 9120 B | Broad-Band Horn Antenna 1 – 10 GHz, N-connector |
| BBHA 9120 C | Broad-Band Horn Antenna 2 – 18 (20) GHz, SMA-connector |
| BBHA 9120 D | Broad-Band Horn Antenna (0,8) 1 – 18 GHz, N-connector |
| BBHA 9120 E | Broad-Band Horn Antenna 0.5 – 6 GHz, N-connector |
| BBHA 9120 F-N | Broad-Band Horn Antenna 0.2 – 2 GHz, N-connector |
| BBHA 9120 F-7/16 | Broad-Band Horn Antenna 0.2 – 2 GHz, 7/16-connector |
| BBHA 9120 G | Broad-Band Horn Antenna 0.4 – 2.8 GHz, 7/16-connector |
| BBHA 9120 J | Broadband horn antenna optimized for the gain in 1 m distance from 800 MHz to 6.2 GHz. Especially optimized for automotive immunity. Power limited by the N‑connector. The N-connector can withstand ca. 400 Watt at 4 GHz. |
| BBHA 9120 LF | Broad-Band Horn Antenna 0.7 – 6 GHz, N-connector |
| BBHA 9170 | Broad-Band Horn Antenna 15 – 26.5 (40) GHz, SMA-compatible connector |
| HA 9250-12 | Pyramidal standard gain horn Antenna, 1-2 GHz, 7/16-connector, 20 dBi, optimized for far field gain. |
| HA 9250-24 | Pyramidal standard gain horn Antenna, 2 – 4 GHz, 7/16-connector, 20 dBi, optimized for far field gain. |
| HA 9250-48 | Pyramidal standard gain horn Antenna, 4 – 8 GHz, 7/16-connector, 22mm-tube, 20 dBi, optimized for far field gain. (Alternative fixture available: 3/8’’-thread and M10 thread in center of gravity replaces 22mm-tube, alternative connector available: N replaces 7/16) |
| HA 9251-12 | Pyramidal standard gain horn Antenna, 1-2 GHz, 7/16-connector, far field gain 19-22 dBi, optimized for 1 m gain. |
| HA 9251-24 | Pyramidal standard gain horn Antenna, 2 – 4 GHz, 7/16-connector, 18 dBi, optimized for the gain in 1 m distance. |
| HA 9251-48 | Pyramidal standard gain horn Antenna, 4 – 8 GHz, 7/16-connector, 22mm-tube, 19 dBi, optimized for the gain in 1 m distance. |
| HWRD750 | Double ridged horn antenna 7.5-18 GHz with waveguide flange WRD750. Gain 16-21 dBi, 1 kW, especially to generate very high field strengths. |
| Dual polarised horn antennas | |
| CTIA 0710 | CTIA horn antenna, dual polarized, 0,7-10 GHz, typ. 30 dB cross polar rejection, antenna with reduced size for OTA measurements. Antenna without 22 mm tube! |
| Opt. CTIA tube 22 mm | Option for CTIA 0710: 22 mm tube with indexing ring. |
| BBHX 9120 E | Dual polarized Broad-Band Horn Antenna 0.4 – 10 GHz, N-connectors |
| BBHX 9120 LF | Dual polarized Broad-Band Horn Antenna (0.8) 1 – 8 (10.5) GHz, N-connectors. |

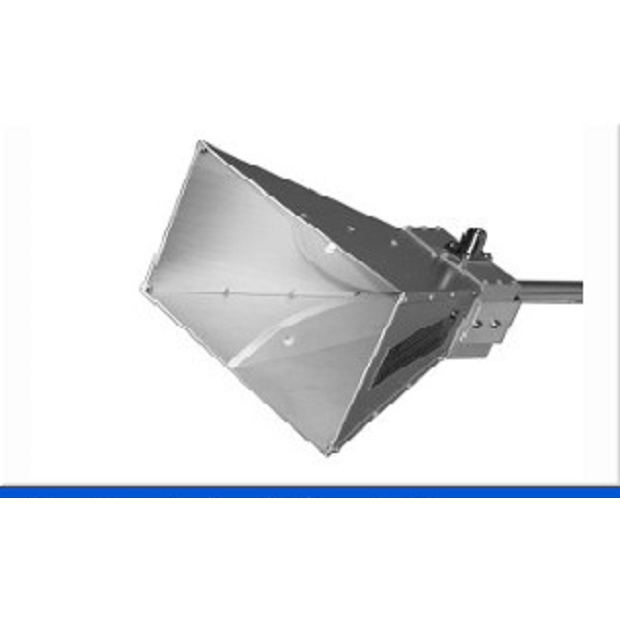

Horn Antenna
