CNE VI

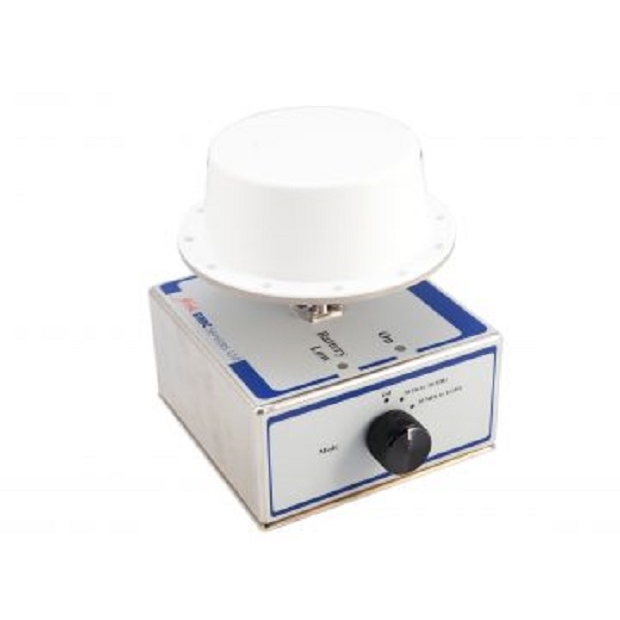

The Comparison Noise Emitter VI (CNE VI) is the latest generation broadband noise source, capable of providing a continuous output from 30 Hz to 6 GHz. The stable output allows the CNE VI to be used as a general-purpose reference source for characterising and verifying both conducted and radiated test environments.

The CNE VI is a broadband noise source that is capable of producing a continuous noise output within the 30 Hz to 6 GHz frequency range. The broadband nature of the output enables the observation of details within the spectrum that would be missed using a comb generator.

The CNE VI features two separate outputs; a 50 Ω BNC connector for the 30 Hz to 30 MHz signal and a 50 Ω N-type output connector for the 30 MHz to 6 GHz signal. For radiated operation, either output can be attached to a selection of antennas available in a range of frequency coverage and types. An IEC 320 adapter is also available to provide a connection to LISN equipment, as well as an RJ11/RJ14/RJ25/RJ45 adapter for connection to telecoms ISNs.

The CNE VI is an ideal source for carrying out checks on Open Area Test Sites (OATS) and fully- or semi-anechoic chambers. The CNE VI is compact and battery powered, allowing operation as an electrically small source, which minimises the effect of the CNE VI itself when characterising the electromagnetic environment. The CNE VI is housed in a metal enclosure so that it can be mounted in direct contact with a metal ground plane as may be required by some tests.

NOISE MODE 1

Frequency Range

30 Hz to 30 MHz direct connection into 50 Ω system
Up to 30 MHz radiated using a 1 m monopole
Up to 30 MHz radiated using loop antennas

Output connector

50 Ω BNC-type socket

Temperature stability

<+/-0.5 dB between 30 Hz to 30 MHz, from 5 °C to 40 °C

Time Stability

Typically <1 dB over a 12 month period

Operating Time

14 hours typical with alkaline cells

NOISE MODE 2
